5V 40A 200W Switching Power Supply AC–DC | DC VOLTAGE ~1068
£22.89 GBP
Shipping calculated at checkout.
Description
A 200W regulated switching power supply converting AC 110–220V mains input to a stable DC 5V output at up to 40A. Housed in an aluminium alloy shell with honeycomb heat dissipation vents, this unit is suited to continuous-duty LED strip installations, CCTV systems, and low-voltage DC automation projects.
Features & Benefits:
- Stable DC 5V output at up to 40A continuous current
- Wide AC input range: 110V–220V, 50–60Hz — compatible with UK and international mains
- Built-in overload, overvoltage, and short-circuit protection
- Aluminium alloy shell with honeycomb heat-sink venting for extended service life
- Switching regulator design — more efficient than linear alternatives

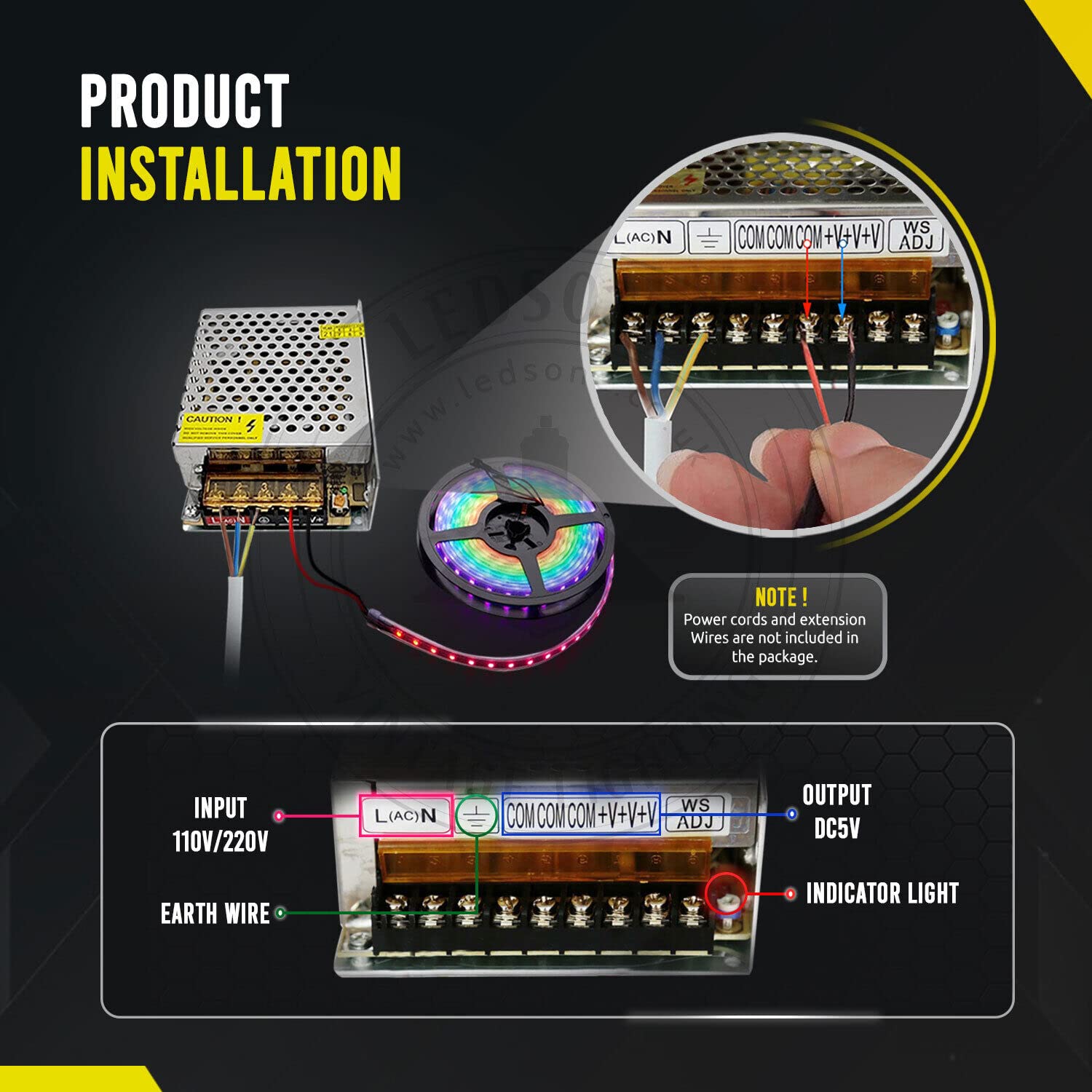

- Compact form factor with screw terminal connections for straightforward installation
- Operating storage temperature: –10°C to 60°C
What's In The Box:
- 1 × 5V DC 40A 200W Universal Regulated Switching Power Supply
Technical Specifications:
| Output Voltage | DC 5V |
| Output Current | 40A |
| Wattage | 200W |
| Input Voltage | AC 110V–220V |
| Input Frequency | 50–60Hz |
| Connection Type | Screw Terminals |
| Shell Material | Aluminium Alloy |
| Protections | Overload, Overvoltage, Short Circuit |
| Storage Temperature | –10°C to 60°C |
Suitable For:
- LED strip lighting installations (5V addressable and non-addressable strips)
- CCTV and security system power supply
- Low-voltage DC automation and control systems
- Electronics workbenches and prototyping rigs
- Signage and display lighting
