24V 24W 1A LED Driver – IP20 Constant Voltage Power Supply ~1008

Power-compatible 24V LED strip lighting and other suitable 24V constant-voltage equipment with this 24V 24W LED driver. Providing a regulated 24V DC output at 1A, this switching power supply is designed for indoor installations where a stable low-voltage supply is required.

The 24V LED power supply features an aluminium housing, screw-terminal connections and built-in protection against overload, over-voltage and short circuit. Its IP20 construction makes it suitable for protected, dry indoor environments, and it is designed as a non-dimmable constant-voltage power supply.

Key Features

• 24V DC output: Provides a regulated constant-voltage supply for compatible 24V LED equipment.
• 24W power rating: The 24W version delivers up to 1A at 24V DC.
• Suitable for LED strips: Designed for compatible 24V LED strip and other constant-voltage lighting applications.
• IP20 indoor design: Intended for installation in dry, protected indoor locations.
• Aluminium housing: Practical enclosure for fixed indoor installations.
• Screw terminals: Provides a direct wired connection for suitable installations.
• Built-in protection: Includes overload, over-voltage and short-circuit protection.
• Non-dimmable: Designed for standard constant-voltage applications.

Technical Specifications

• Product type: 24V LED driver / switching power supply
• Input voltage: 110/220V AC
• Input frequency: 50/60Hz
• Output voltage: DC 24V
• Output power: 24W
• Output current: 1A
• IP rating: IP20
• Dimming: Non-dimmable
• Connection type: Screw terminals
• Housing material: Aluminium
• Protection: Overload, over-voltage and short circuit
• Application: Indoor use

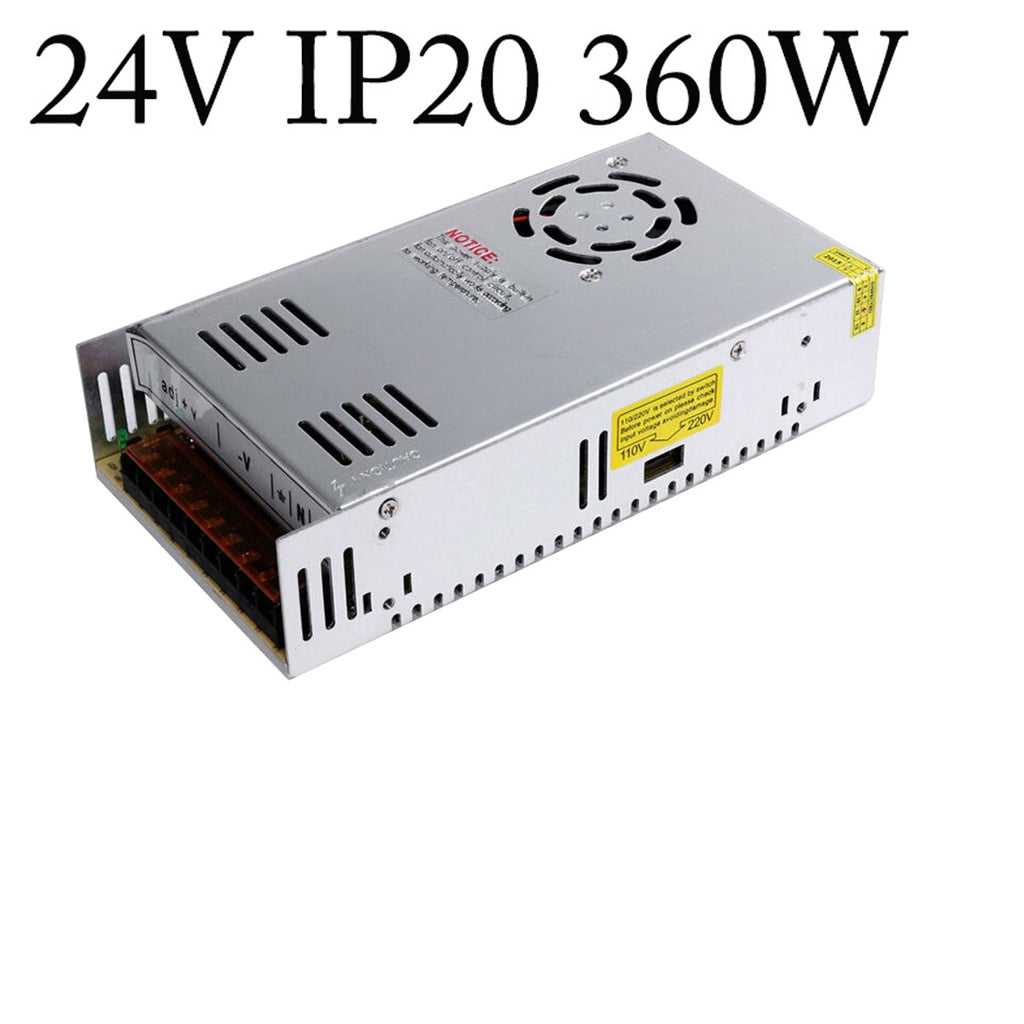

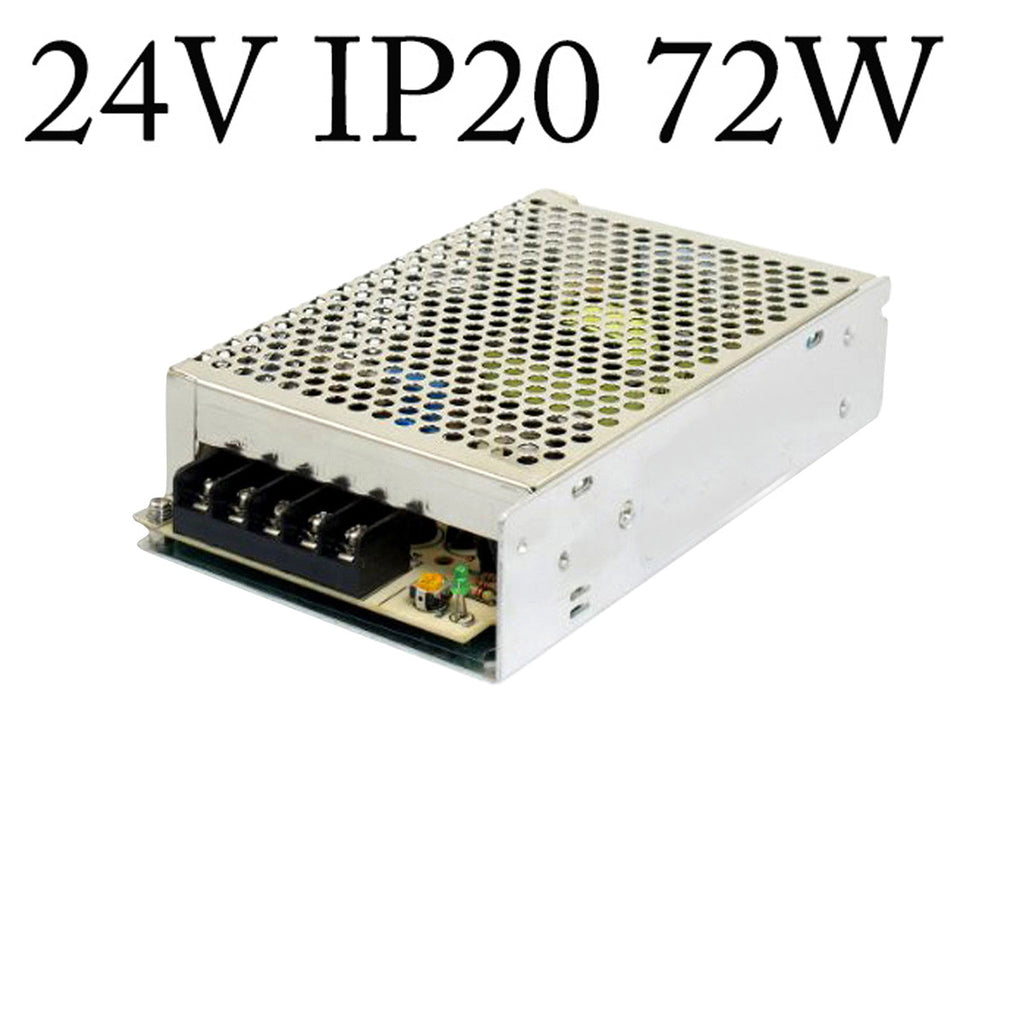

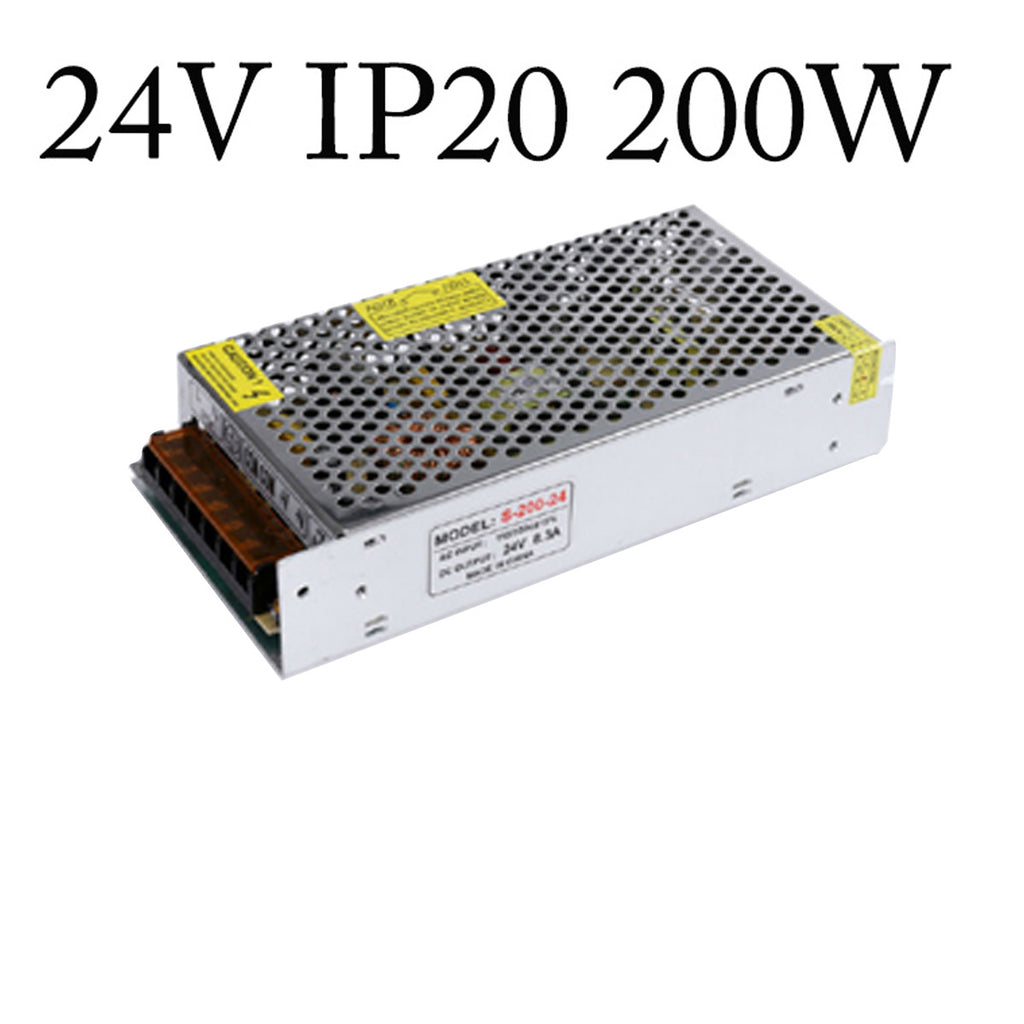

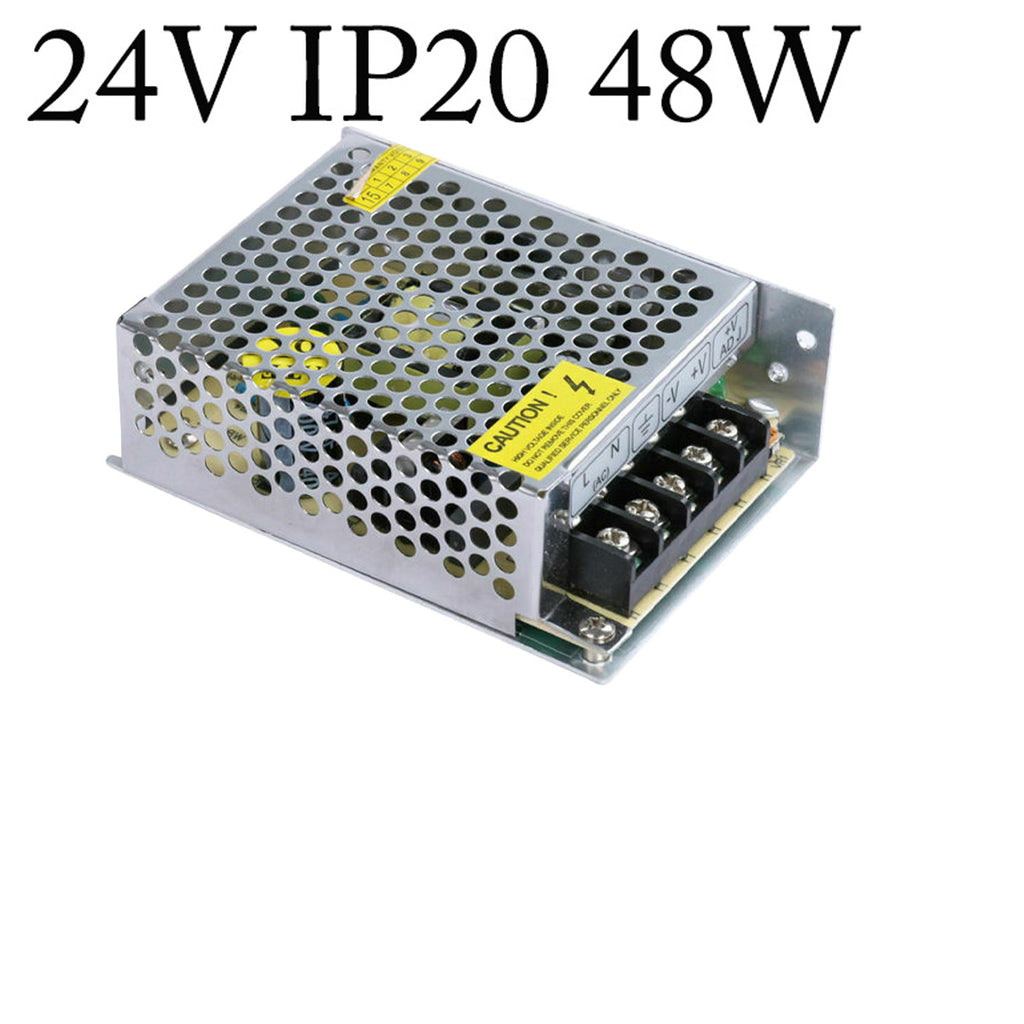

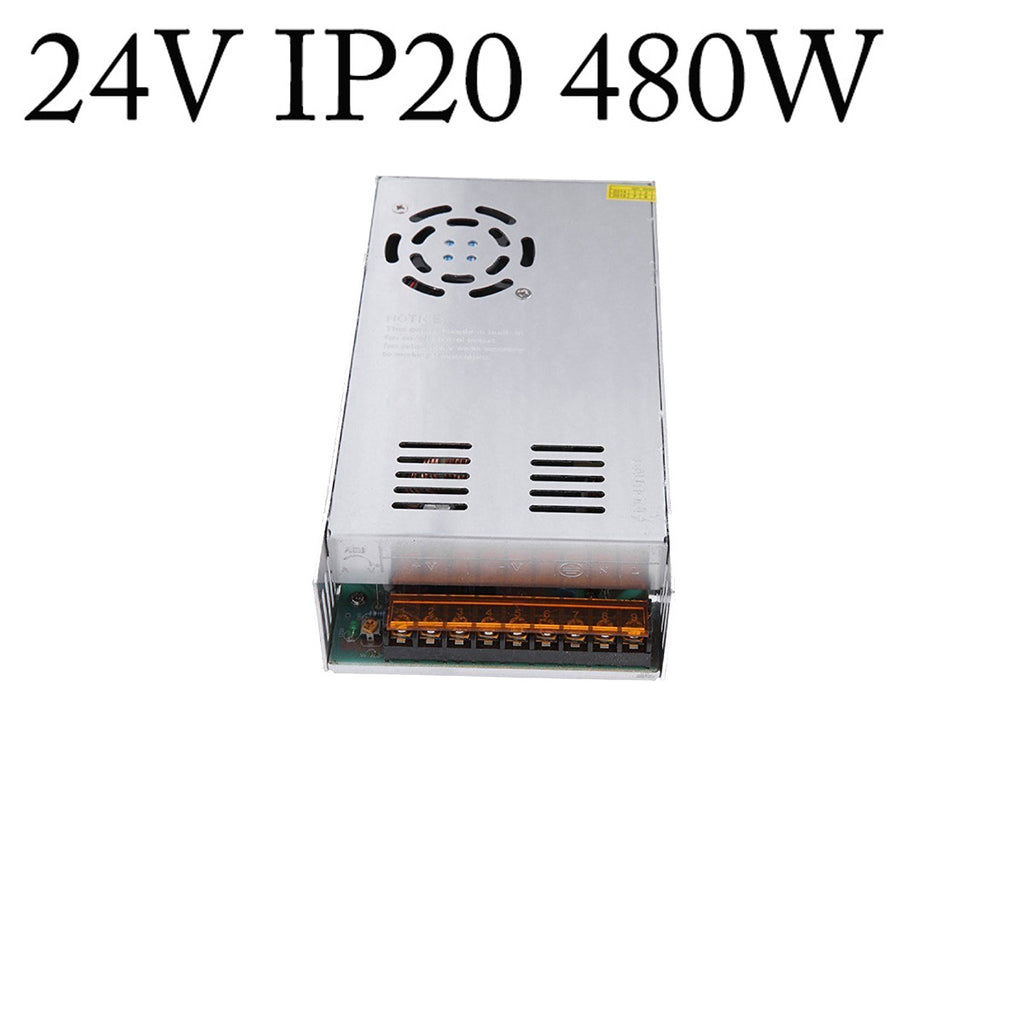

Important: The 1A output current applies to the 24W variant. Output current for the 48W, 72W, 200W, 360W and 480W versions varies according to the selected wattage and should be confirmed against the relevant variant specification before installation.

How to Choose a 24V LED Driver

Check that your LED strip or lighting system requires 24V DC constant voltage before purchasing. The power supply must match the required voltage, and its wattage should be sufficient for the total connected LED load.

For the 24W version, the maximum rated output is 24W at 24V and 1A. Do not connect a load that exceeds the driver's rated capacity. For larger LED installations, select a higher-wattage variant where appropriate.

Installation & Safety

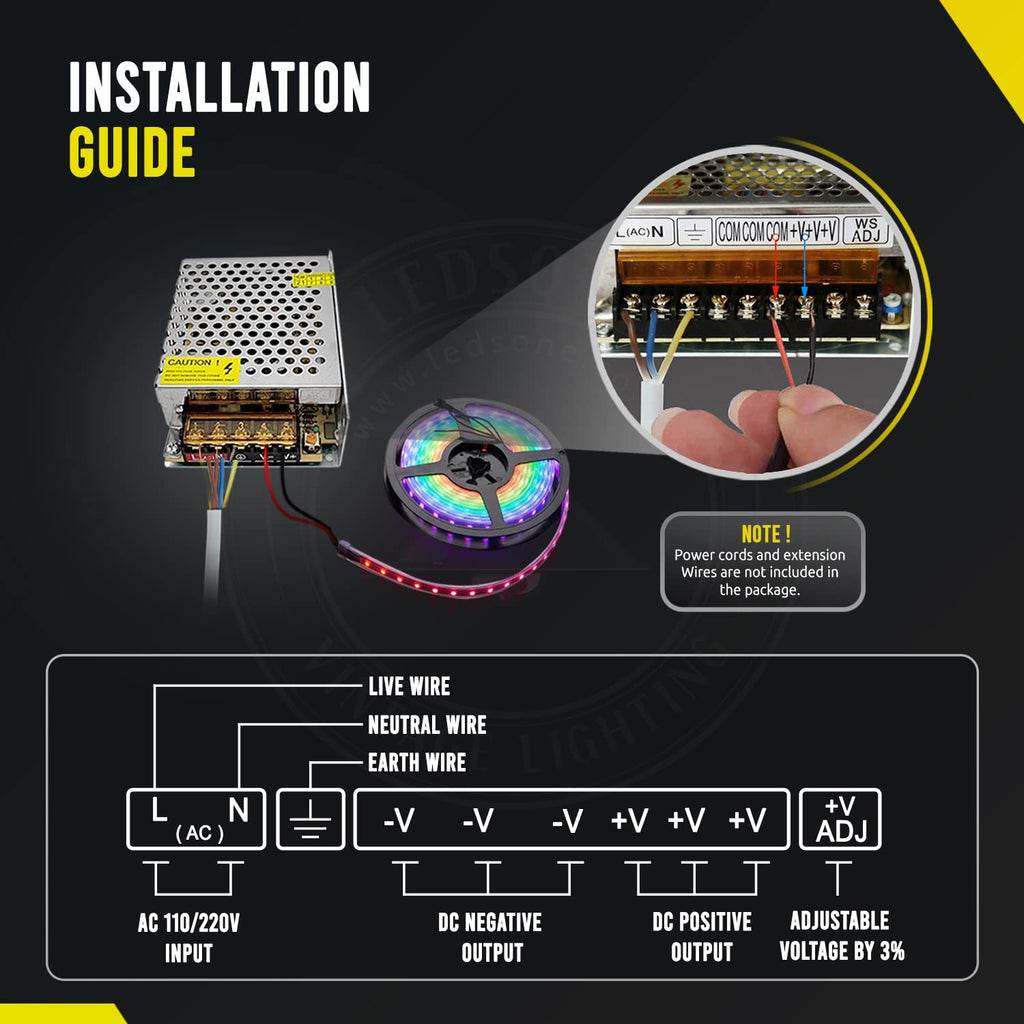

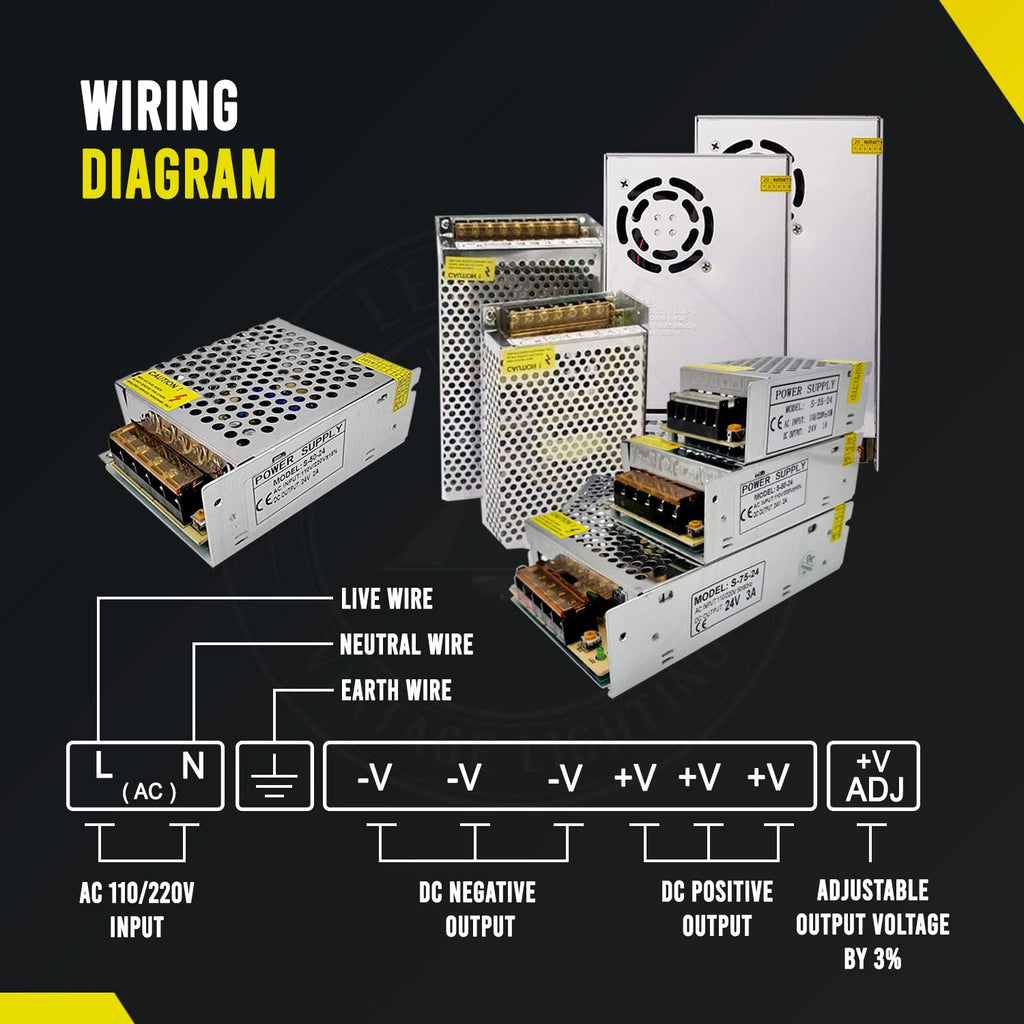

The screw-terminal connection is intended for a hard-wired electrical installation. Ensure the AC input and 24V DC output are connected to the correct terminals and that the connected equipment matches the driver's voltage and power specifications.

Important: Disconnect the mains supply before installation or maintenance. Mains electrical connections should be carried out by a suitably competent person in accordance with applicable UK electrical requirements and the manufacturer's wiring instructions.

What's Included?

• 1 × 24V LED driver / switching power supply

Check the selected variant's dimensions, output current and electrical specifications before ordering, particularly when choosing one of the higher-wattage versions.
