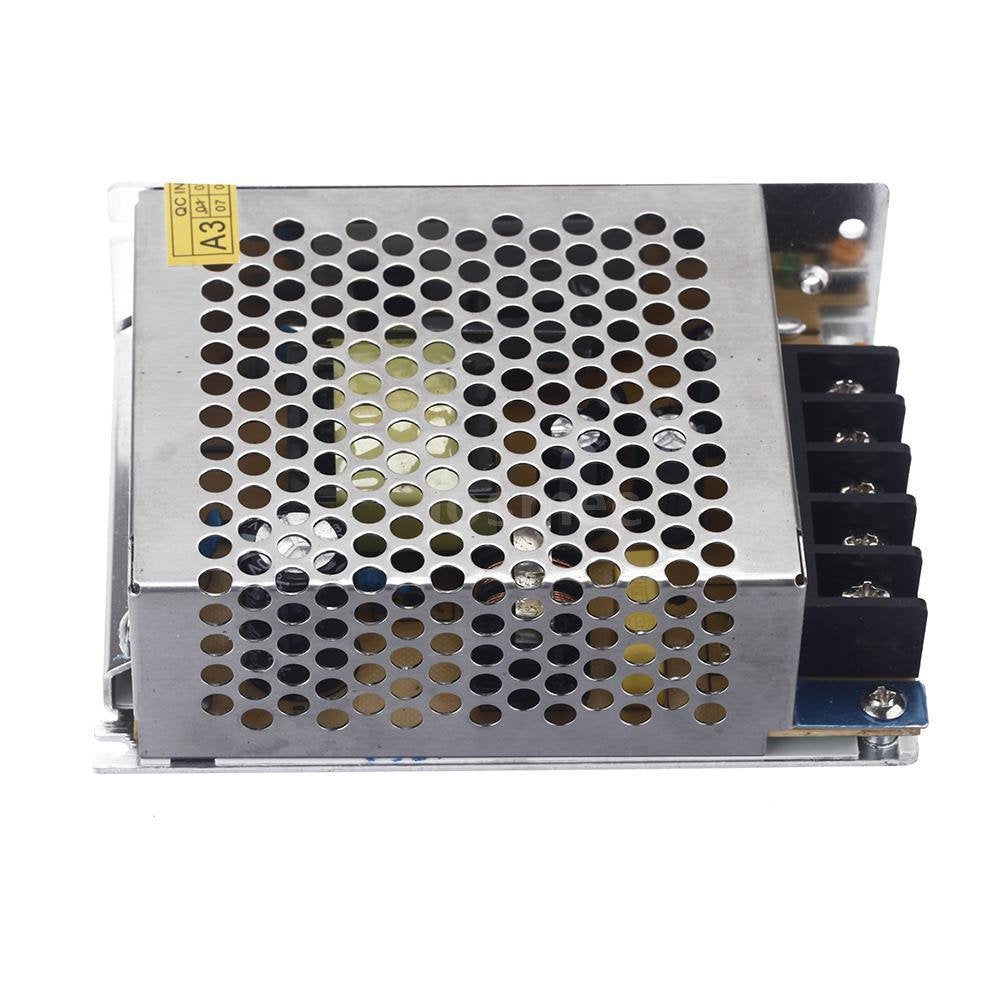

DCVoltage 5V LED Driver Switching Power Supply ~1007

Power compatible 5V LED lighting and other suitable low-voltage equipment with this 5V DC switching power supply. Designed to convert mains AC input into a regulated 5V DC output, it is suitable for compatible constant-voltage LED strips, modules and other 5V electrical equipment used in indoor, dry environments.

Available in multiple power options from 10W to 300W, this 5V power supply allows you to select a capacity appropriate for your connected load. The aluminium housing provides a practical enclosure for indoor installations, while screw terminals allow direct electrical connections where a plug-in power adapter is not required.

Key Features

• Regulated 5V DC output: Converts mains AC input to a constant 5V DC supply for compatible equipment.
• Multiple power options: Available in 10W, 25W, 30W, 50W, 100W, 150W, 200W and 300W variants.
• Indoor IP20 design: Intended for use in suitable dry indoor environments.
• Aluminium housing: Provides a practical enclosure for fixed indoor installations.
• Screw-terminal connection: Designed for direct wired connections rather than a plug-in adapter.
• Built-in protection: Designed with overload, over-voltage and short-circuit protection.
• Non-dimmable: Designed for standard constant-voltage applications rather than dimming.
• Wide AC input: Designed for 110–220V AC mains input at 50/60Hz.

Technical Specifications

• Product type: 5V DC switching power supply
• Input voltage: AC 110–220V
• Input frequency: 50/60Hz
• Output voltage: DC 5V

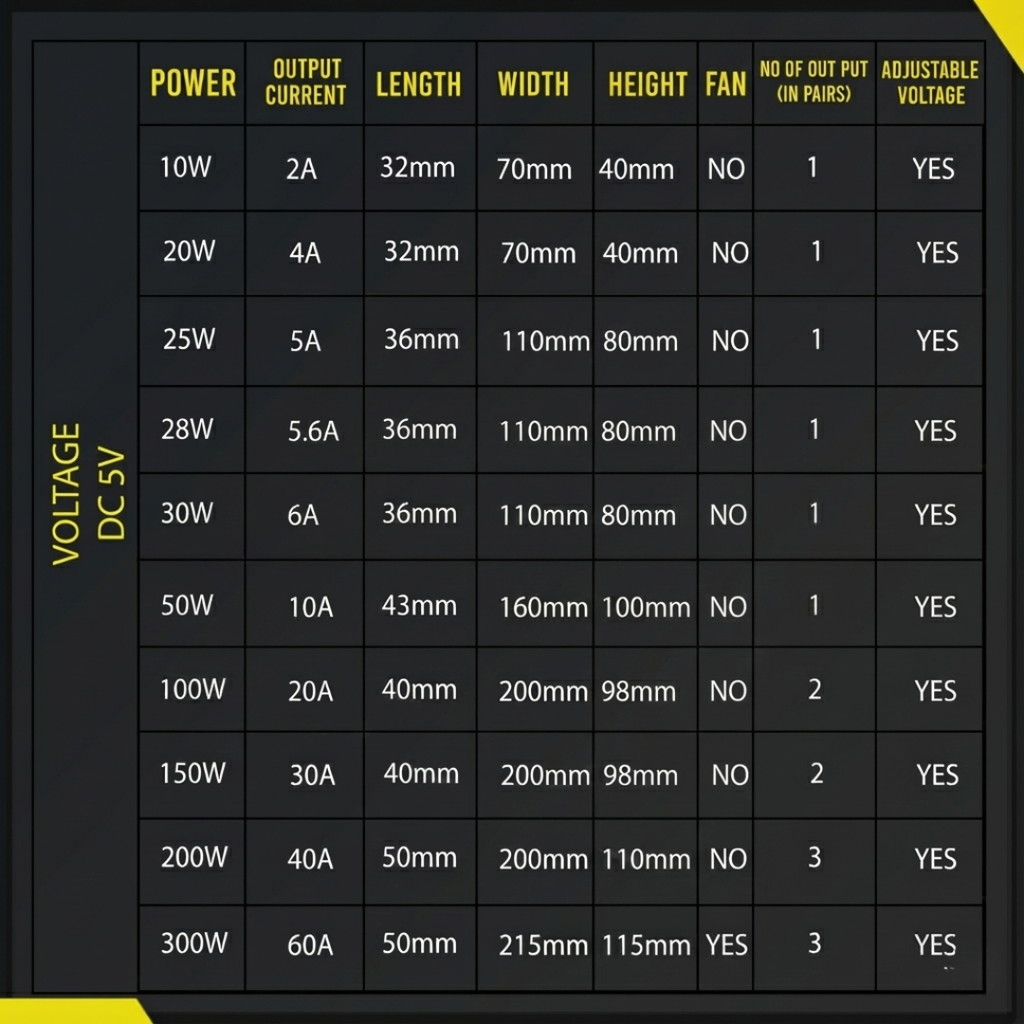

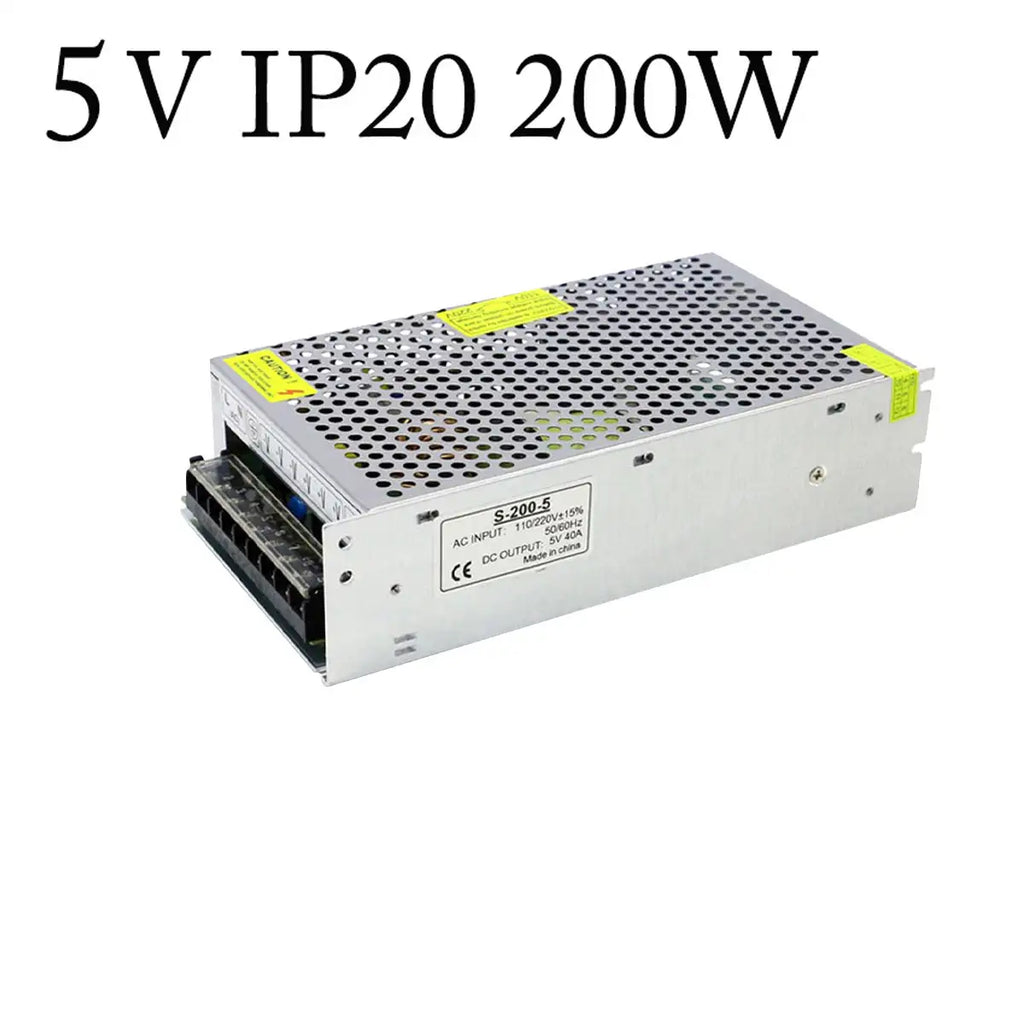

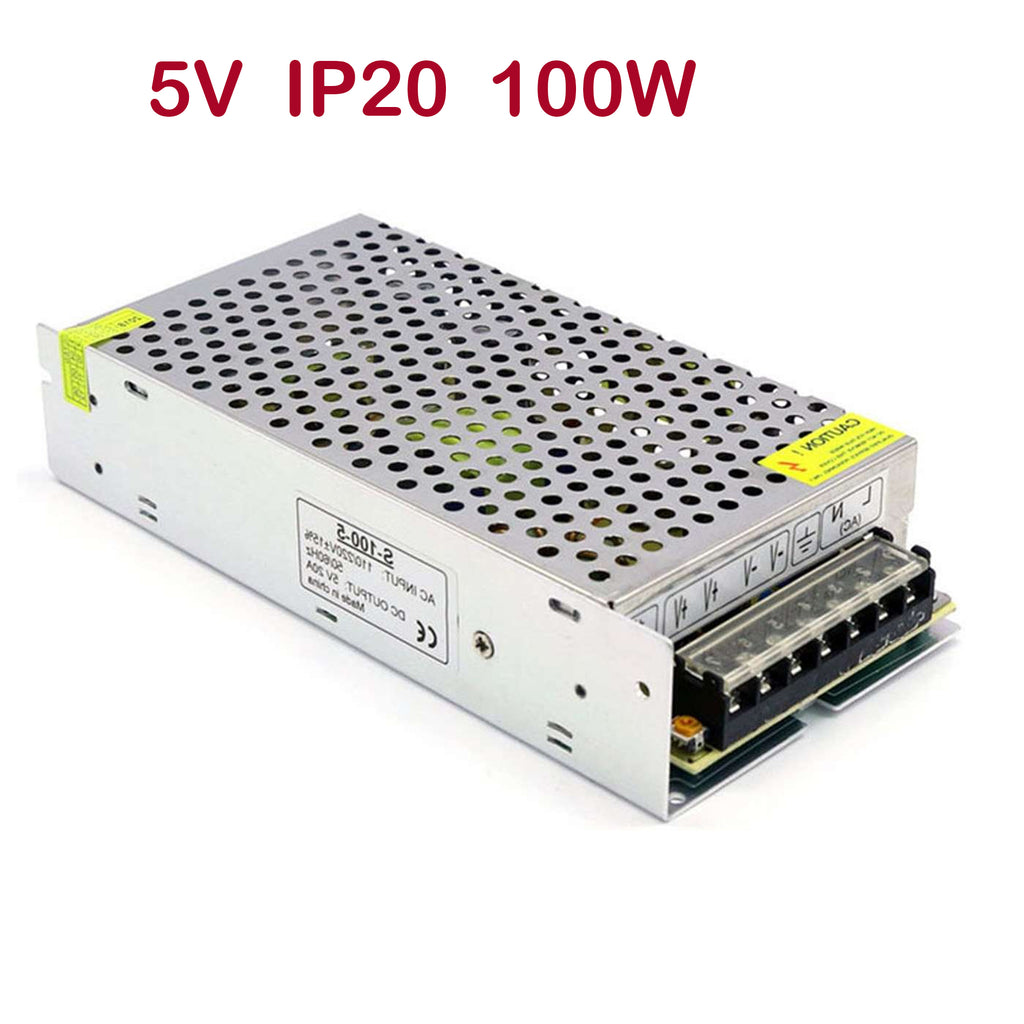

• Output power options: 10W, 25W, 30W, 50W, 100W, 150W, 200W and 300W
• Output current: Varies according to selected wattage
• IP rating: IP20
• Dimming: Non-dimmable
• Connection: Screw terminals
• Housing material: Aluminium
• Protection: Overload, over-voltage and short circuit
• Application: Indoor, dry environments

Choose the Correct 5V Power Supply

When selecting a 5V LED power supply, make sure your LED lighting or other equipment requires a 5V DC constant-voltage output. The selected power rating should also be suitable for the total connected load.

Always verify the selected variant's output voltage, wattage, output current and physical dimensions before purchase and installation.

Where Can This 5V Switching Power Supply Be Used?

This 5V DC power supply is suitable for compatible indoor applications such as 5V LED strip lighting, LED modules, displays and other constant-voltage low-voltage equipment. Its IP20 construction makes it appropriate for protected, dry locations rather than exposed outdoor or damp environments.

Installation & Safety

The screw-terminal design is intended for fixed electrical connections. Ensure the mains input and 5V DC output are connected to the correct terminals and that the connected equipment is compatible with the power supply's output specifications.

Important: This is an IP20 indoor power supply and should not be installed where it can be exposed to water, rain, condensation or excessive moisture. Electrical connections should be completed by a suitably competent person. Disconnect the mains supply before carrying out installation or maintenance.
